YATO GROOTHANDEL HANDGEREEDSKAP MOTORHERSTELWERK GEREEDSKAP KABINET GEREEDSKAP TROLLIE YT-55293
Beskrywing
| tipe: | Kabinet | Kleur: | Rooi, rooi |
| Plek van Oorsprong: | Sjanghai, China | Brand Naam: | YATO |
| Model nommer: | YT-55293 | Produk naam: | ROLKAS MET 165 STKS GEREEDSKAP |
| Feature: | roerende | MOQ: | 1 Stel |
| OEM: | Aanvaar | Verpakking: | karton |
| sluit: | Sleutel slot |
| 165 STKS; JOU ITEM NO.: F5SRP7B; AFMETINGE 958x766x465MM;7 LAAIE W/ KOELLAERS (5 KLEIN, 1 MIDDEL, 1 GROOT); PLASTIEK WERKBLAD; GESENTRALISEERDE SLOT, MAX. CAPACITY: SMALL DRAWER - 25KG, MIDDLE DRAWER - 35KG, LARGE DRAWER - 35KG; DIMENSIONS: SMALL DRAWER - 533x391x58MM, MIDDLE DRAWER - 533x391x128MM, LARGE DRAWER - 533x391x195MM; 4 WHEELS 125MM: 2 FIXED, 2 CASTORS (1 W/ BRAKE), UNIVERSAL PREFORMATION SIDE WALL, WEIGHT: 62KG; TRAY 1: 16PCS YATO COMBINATION SPANNERS, GERMAN TYPE, SATIN FINISH WITH POLISHED HEAD, 15 DEG OFFSET, CR-V; AS DRIVE, YT-0335~YT-0350 (6/ 7/ 8/ 9/ 10/ 11/ 12/ 13/ 14/ 15/ 16/ 17/ 18/ 19/ 20/ 21MM), PVC TRAY FOR 1/3 DRAWER / TRAY 2: 6PCS YATO COMBINATION SPANNERS, GERMAN TYPE, SATIN FINISH WITH POLISHED HEAD, 15 DEG OFFSET; CR-V; AS DRIVE, YT-0351~YT-0360 (22/ 24/ 27/ 28/ 30/ 32MM), PVC TRAY FOR 1/3 DRAWER / TRAY 3: 40 PCS SCREWDRIVER BIT SET, S2 STEEL, ADAPTOR 1/2" <(>&<)> 3/8": 14 PCS HEX BITS, 30MM (H4, 5, 6, 7, 8, 10, 12) <(>&<)> 75MM (H4, 5, 6, 7, 8, 10, 12) / 14PCS TORX BITS, 30MM (T20, T25, T30, T40, T50, T55) <(>&<)> 75MM (T20, T25, T30, T40, T50, T55) / 10PCS SPLINE BITS, 30MM (M5, 6, 8, 10, 12) <(>&<)> 75MM (M5, 6, 8, 10, 12) / PVC TRAY FOR 1/3 DRAWER TRAY 4: 24PCS SOCKET SET, 6PT, 1/2" DRIVE, CRV50BV30, AS-DRIVE, 2 TONE WITH KNURLING, YT-1203~YT-1243 (10/ 11/ 12/ 13/ 14/ 15/ 16/ 17/ 18/ 19/ 20/ 21/ 22/ 23/ 24/ 27/ 30/ 32MM), YT-0732 CURVED RATCHET HANDLE, 1/2", CRV 6140, 72TH, CURVED / YT-1247 EXTENSION BAR 1/2" 127MM / YT-1252 UNIVERSAL JOINT 1/2", YT-1253~YT-1254 SPARK PLUG SOCKET 1/2", 16MM, 21MM, YT-1243 SLIDING T-BAR 1/2" 255MM / PVC TRAY FOR 1/3 DRAWER / TRAY 5: 25PCS SOCKET SET, 1/4", 6PT, CRV50BV30, AS-DRIVE, REGULAR, YT- 1401~YT-1412 (3,5/ 4/ 4,5/ 5/ 5,5/ 6/ 7/ 8/ 9/ 10/ 11/ 12/ 13/ 14MM), DEEP, YT-1419~YT-1424 (8/ 10/ 11/ 12/ 13MM), EXTENSION BAR 1/4", YT-1429 (50,8MM) <(>&<)> YT-1431 (101,6MM), YT-1437 UNIVERSAL JOINT 1/4", YT-1425 SLIDING T-BAR 1/4", 152,4MM, YT-0730 CURVED QUICK RELEASE RATCHET HANDLE 1/4", 72TH, CRV6140 / SPINNER HANDLE 1/4" / PVC TRAY FOR 1/3 DRAWER TRAY 6: 4PCS YATO PLIERS, YT-1941 COMBINATION PLIERS, CR-V, 180MM / YT- 1943 LONG NOSE PLIERS, CR-V, 160MM, YT-1945 BENT NOSE PLIERS, CRV, 160MM / YT-1947 SIDE CUTTING PLIERS, CRV, 160MM / PVC TRAY FOR 1/3 DRAWER; TRAY 7: 7PCS SLOTTED SCREWDRIVER SET, S2 STEEL, SATIN FINISH, SANDED TIP, YT-2760 3x75MM; YT-2763 5x100MM, YT-2764 5x150MM, YT-2765 6x38MM, YT-2766 6x100MM, YT-2767 6x150MM, YT-2769 8x150MM/ PVC TRAY FOR 1/3 DRAWER; COLOUR OF TRAYS: BLACK TRAY 8: 7PCS PHILLIPS SCREWDRIVER SET, S2 STEEL, SATIN FINISH, SANDED TIP, YT-2771 PH0x100MM; YT-2772 PH1x75MM, YT-2773 PH1x100MM, YT-2775 PH2x38MM, YT-2776 PH2x100MM, YT-2777 PH2x150MM, YT-2779 PH3X150MM / PVC TRAY FOR 1/3 DRAWER TRAY 9: 3 PCS LOCK GRIP PLIERS SET: ADJUSTABLE WRENCH 260MM Cr-V (YT- 2172); LOCKING PLIERS 5" (125MM) (YT-2449); WATER PUMP PLIERS 300MM (YT- 2091) TRAY 10: 14 PCS 3/4" SOCKETS SET: SOCKET 6PT 3/4" 19MM (YT-1301); SOCKET 6PT 3/4" 21MM (YT-1302); SOCKET 6PT 3/4" 22MM (YT-1303); SOCKET 6PT 3/4" 24MM (YT-1305); SOCKET 6PT 3/4" 27MM (YT-1308); SOCKET 6PT 3/4" 28MM (YT-1309); SOCKET 6PT 3/4" 30MM (YT-1311); SOCKET 6PT 3/4" 32MM (YT-1312); SOCKET 6PT 3/4" 34MM (YT-1314); SOCKET 6PT 3/4" 36MM (YT-1316); SOCKET 6PT 3/4" 41MM (YT-1318); SOCKET 6PT 3/4" 46MM (YT-1322); SOCKET 6PT 3/4" 50MM (YT-1324); SOCKET 6PT 3/4" 55MM (YT-1328) TRAY 11: 4 PCS ACCESSORIES FOR 3/4" SOCKETS: RATCHET HANDLE 3/4"X500mm (YT-1360); EXTENSION BAR 3/4"x200MM (YT-1341); UNIVERSAL JOINT 3/4" (YT- 1352); SLIDING T BAR 3/4"x500MM (YT-1350); PVC TRAY FOR 1/2 DRAWER TRAY 12: 10 PCS AUTOMOTIVE WORKSHOP TOOLS SET: PILOT BEARING PULLER (YT- 2510); IMPACT SCREWDRIVER (YT-2802); SPRING PRESSURE REGULATOR (YT- 2544); 2 ARMS JAWS PULLER (YT-2515) TRAY 13: 5 PCS AUTOMOTIVE WORKSHOP TOOLS SET: TIE ROD END REMOVER (YT- 0615); TIE ROD END LIFTER (YT-0612); TIRE LEVER 500MM (YT-0809); TIRE LEVER 400MM (YT-0808); TIRE LEVER 300MM (YT-0807); PVC TRAY FOR 1/2 DRAWER; COLOUR OF TRAYS: BLACK |
Beskrywing

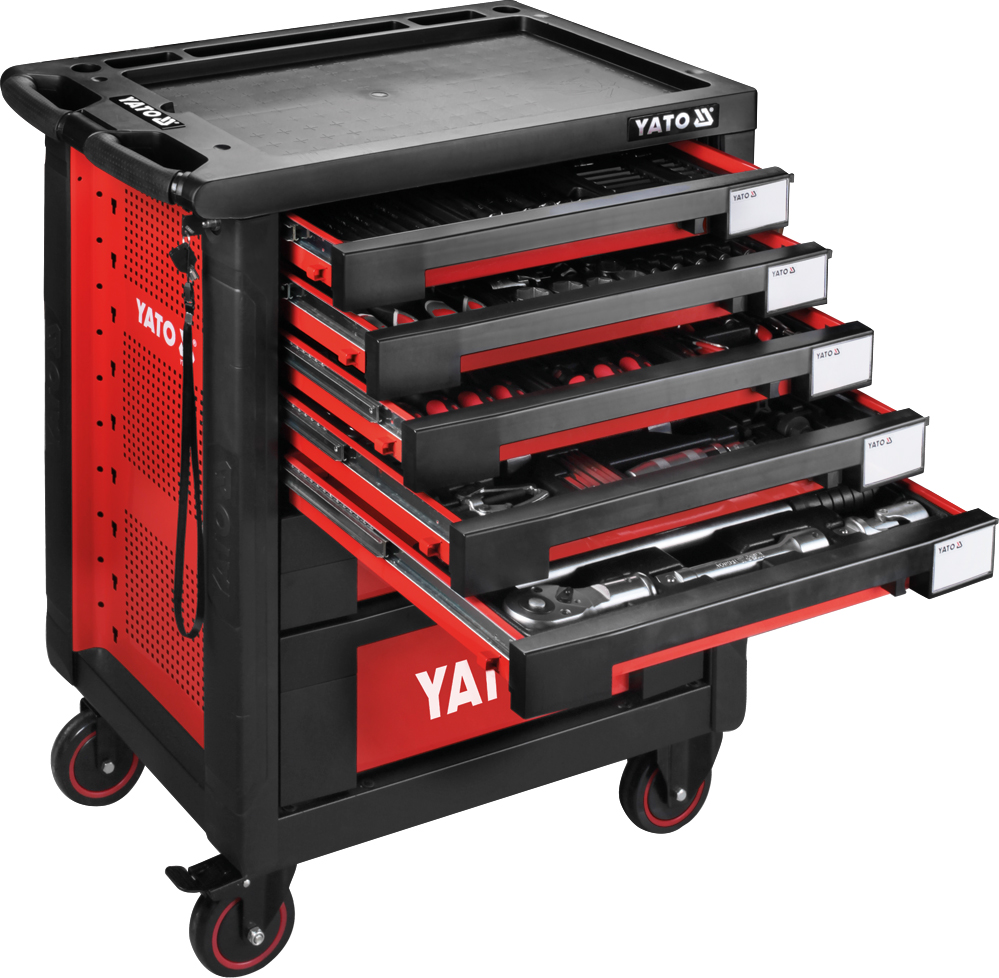

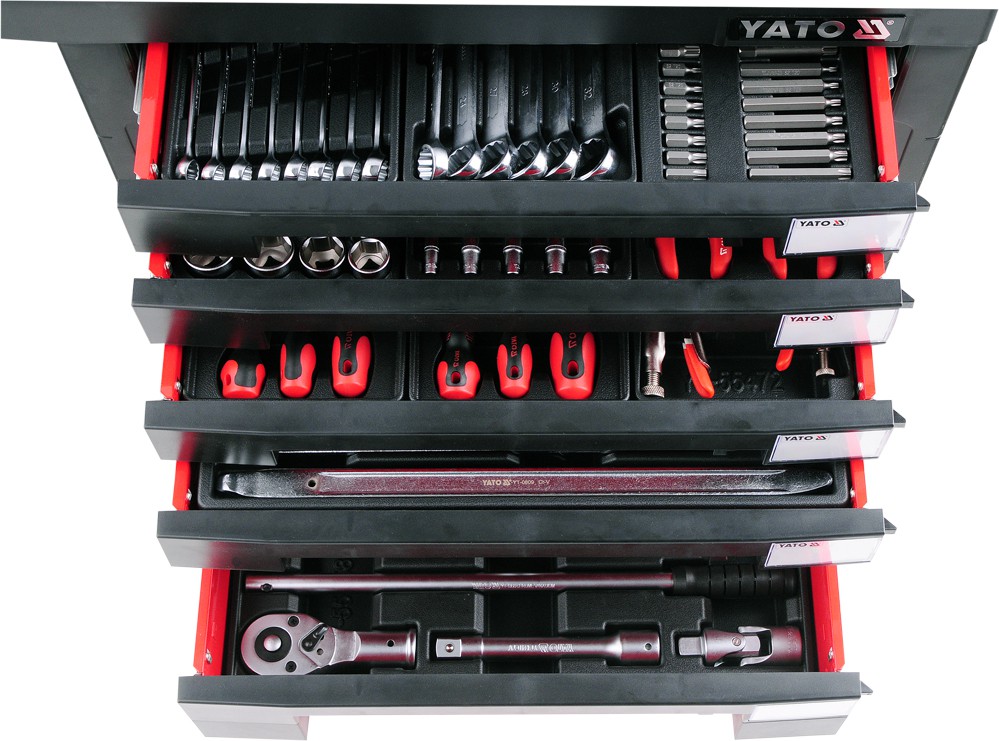

Gereedskapskas deur YATO. Dit is toegerus met 7 laaie op kogellagers. Die boonste 5 laaie bevat 165 noukeurig geselekteerde gereedskap. Die profiele is gemaak van dubbele staalplaat - universele perforasie laat jou toe om die kas met bykomende elemente aan te pas. Sentrale sluiting en individuele sluiting van elke laai. Die kas het hoekbuffers wat beskerm teen toevallige skade, bv. van 'n motorbak. Werkblad van glyvrye polipropileen, maksimum werkbladlading 400 kg, wiele met rem. Onontbeerlik in motorwerkswinkels en voertuigdiensstasies.
Contents [show]

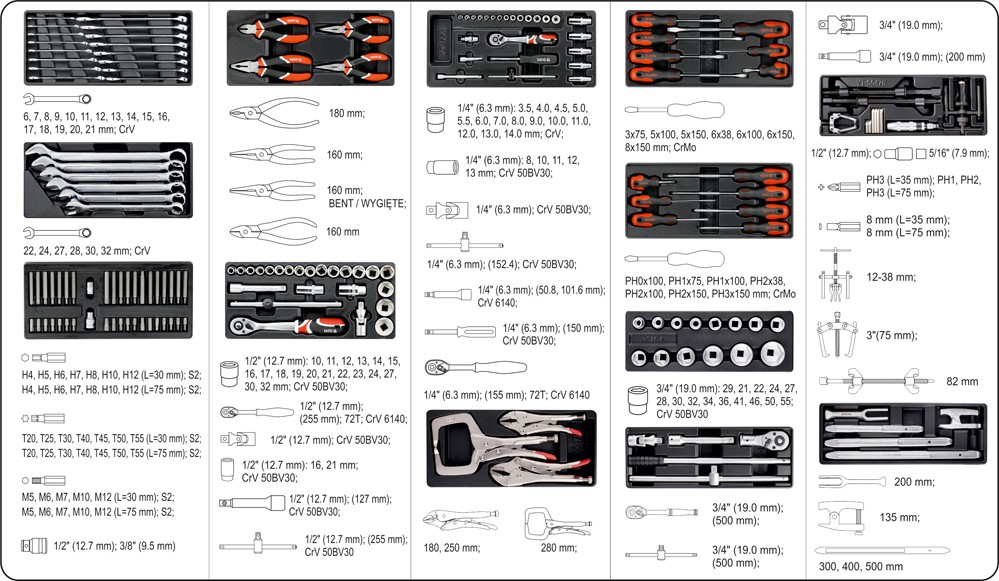

INLAS 1: Kombinasiesleutels YT-0335 ~ YT-0350 (6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 mm)
INLAS 2: YT-0351 ~ YT-0360 kombinasie moersleutels (22, 24, 27, 28, 30, 32 mm)
INSERT 3: ADAPTER 1/2 "& 3/8"; HEX-stukke, 30 MM (H4, 5, 6, 7, 8, 10, 12) & 75 MM (H4, 5, 6, 7, 8, 10.12) / TORX-stukke, 30 MM (T20, T25, T30, T40 , T45, T50, T55) & 75 MM (T20, T25, T30, T40, T45, T50, T55) / Bits SPLINE, 30 MM (M5, 6, 8, 10, 12) & 75 MM (M5, 6 , 8, 10, 12)
INSTEL 4: 1/2" seskantige voetstukke YT-1203 ~ YT-1243 (10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27 , 30 MM), ratel YT-32 0732/1 ", CRV 2, 6140T / YT-72 verlenging 1247/1" 2 MM / YT-127 kardanverbinding 1252/1 ", YT-2 ~ YT-1253 kersaanhegsel 1254 /1", 2 MM, 16 MM, YT-21 T-tipe knop 1243/1" 2 MM
INLAS 5: 1/4" seskantige voetstukke YT-1401 ~ YT-1412 (3.5; 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm), YT-1419 ~ YT-1424 (8, 10, 11, 12, 13 MM), 1/4 "verlenging, YT-1429 (50.8 MM) & YT-1431 (101.6 MM), YT -1437 kardangewrig 1/4 ", YT -1425 knop tipe T 1/4", 152.4 MM, YT-0730 1/4" ratel, 72TH, CRV6140
INLAS 6: YT-1941 universele tang CR-V, 180 MM / YT-1943 reguit langwerpige tang, CR-V, 160 MM, YT-1945 gebuigde langwerpige tang, CRV, 160 MM / YT-1947 sysnytang, CRV 160 MM
INLAS 7: YT-2760 3x75 MM plat skroewedraaiers; YT-2763 5x100 MM, YT-2764 5x150 MM, YT-2765 6x38 MM, YT-2766 6x100 MM, YT-2767 6x150 MM, YT-2769 8x150 MM
INLAS 8: Phillips YT-2771 PH0x100 MM; YT-2772 PH1x75 MM, YT-2773 PH1x100 MM, YT-2775 PH2x38 MM, YT-2776 PH2x100 MM, YT-2777 PH2x150 MM, YT-2779 PH3X150
INLAS 9: krimptang YT-2452, YT-2453, YT-2468
VOEG IN 10: seskantvoetstukke 3/4" 19 MM (YT-1301); 21 MM (YT-1302); 22 MM (YT-1303); 24 MM (YT-1305); 27 MM (YT-1308); 28 MM (YT-1309 30 MM (YT-1311); YT-32 1312 MM (YT-34);
INLAS 11: 3/4 "X500mm ratel (YT-1360); 3/4" x200 MM verlenging (YT-1341); 3/4" kardanverbinding (YT-1352); T-handvatsel 3/4" x500 MM (YT-1350)
INLAS 12: laertrekker (YT-2510); impakskroewedraaier (YT-2802); veertrekkers (YT-2544); twee-arm trekker (YT-2515)
INLAS 13: stuurstangtrekker (YT-0615); balstoettrekker (YT-0612); bandemmer 500 MM (YT-0809); 400 MM (YT-0808); 300 MM (YT-0807)
Tegniese data
| simbool | YT-55293 |
|---|---|
| EAN | 5906083552939 |
| Brand | Yato |
| gewig (kg) | 92.0000 |
| materiaal | staalplaat |
| Hoeveelheid laaie | 7 |
| Grootte [cm] | 95,8x76,6x46,5 |
| Hoeveelheid [stuks] | 16 |
YATO - OOREENKOMS MET TEGNOLOGIE
Duursaamheid, perfeksie van uitvoering, uitstekende materiale en hoë gehalte staal is die belangrikste tegniese kenmerke van YATO-produkte, wat op drie gebiede gebruik kan word: motorherstelwerkswinkels, konstruksie en tuin. Hand- en pneumatiese YATO-gereedskap word suksesvol gebruik deur spesialiste uit baie bedryfsvelde. Die unieke duursaamheid en weerstand van YATO-gereedskap is bestem vir swaar diens en dienstoepassings.
YATO MERKGEREEDSKAP
Duursaamheid, perfeksie van vakmanskap, uitstekende materiale, hoë gehalte staal is tegniese kenmerke van YATO-produkte, waarvan die aanbod drie gebiede betref: diens, konstruksie en tuin. YATO-hand- en pneumatiese gereedskap word suksesvol deur spesialiste op baie terreine van die ekonomie gebruik. Uitsonderlike duursaamheid en duursaamheid stel YATO voor vir toepassings in intense industriële en diensomstandighede.
Aksie:Moet u nie huiwer om vrae te vra oor die goedere nie kontak ons.
