Description
Thickness: | 1/2in | Jaw Capacity: | 1 1/2IN |
Max Torque Capacity: | 200N-m | Place of Origin: | Shanghai, China |
Brand Name: | yato | Model Number: | YT-0760 |
Material: | Stainless Steel | Size: | custom |
Product name: | TORQUE WRENCH 1/2" 42-210NM CRV6140 | Application: | Auto Repairing |
Color: | Silver | MOQ: | 12 PC |
Logo: | Customized Logo | OEM: | Accepted |
Quality: | Durable Solid | GROUP: | INDUSTRIAL |
: |
Description

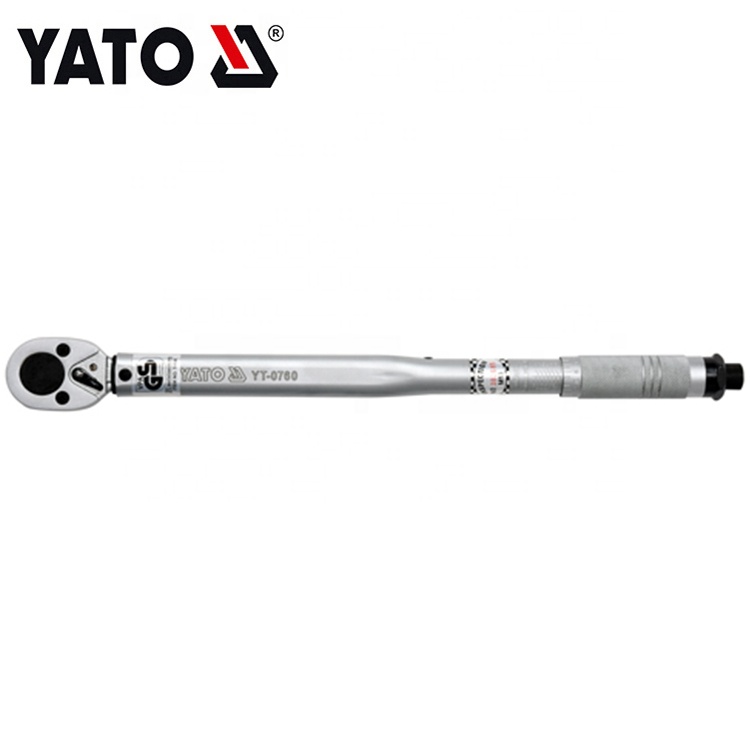

The key is made of chrome vanadium steel, which ensures its durability and strength. It has a mechanical tension of a dynamometric pawl, which, after reaching the desired tightening force, jumps by one notch, making a characteristic sound. The torque scale is located in the key handle, its adjustment is made by turning it. After setting the desired moment, lock the key with the security at the end of the handle.
The key is GS certified.
Comparison of moments in different units of length and force:
1 kg * cm = 13.887 OZ * IN (oz x inch)
1 kg * cm = 0.867 LB * IN (lb-in)
1 kg * m = 9.80665 N * m (Newton x meter)
1 kG * m = 7.233 LB * FT (pound x foot)
1 FT * LB = 12 LB * IN (lb-in)
1 dm * N = 14.16 OZ * IN (oz x inch)
Intended use / Application
It is used to screw threaded fasteners so that the torque of the connection is known and appropriate to the type of material and the strength of the bolt and nut.
Comparison of moments in different units of length and force:
1 kg * cm = 13.887 OZ * IN (oz x inch)
1 kg * cm = 0.867 LB * IN (lb-in)
1kG * m = 9.80665 N * m (Newton x meter)
1 kG * m = 7.233 LB * FT (pound x foot)
1FT * LB = 12 LB * IN (lb-in)
1dm * N = 14.16 OZ * IN (oz x inch)
How to use

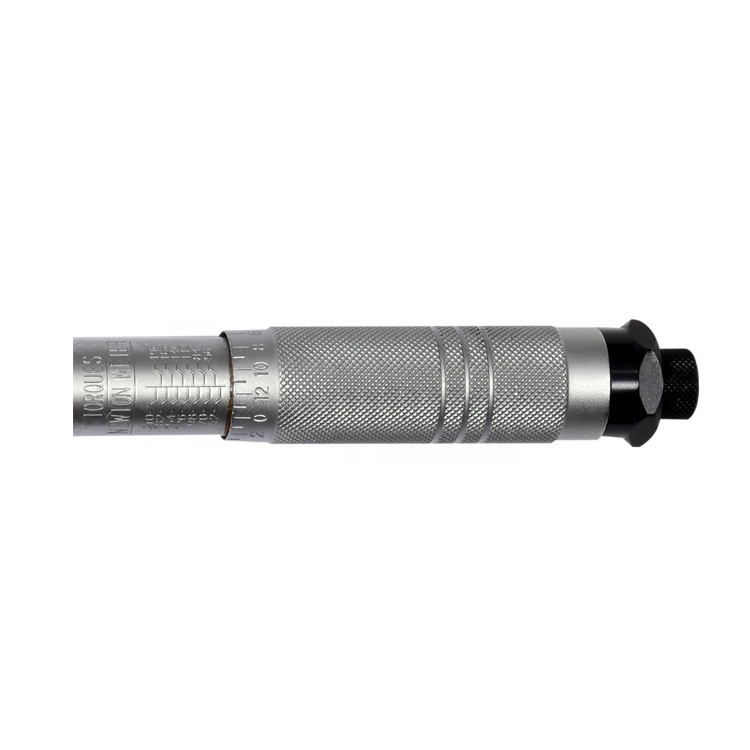

Select the appropriate Nm or in-lbs scale. Unlock the micrometer knob.
Set the micrometer knob so that the "0" on the knob scale coincides with the vertical line on the key arm.
Turn the micrometer dial clockwise until the desired torque is set.
The desired torque is set when the scale on the micrometer dial coincides with the vertical line on the wrench arm.

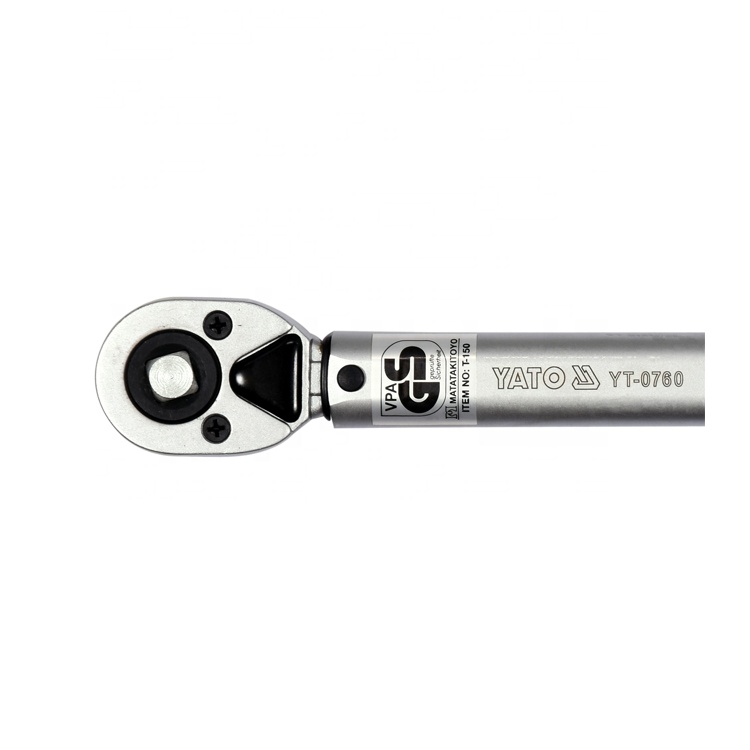

Then lock the micrometer knob and set the right direction of rotation of the ratchet, after which the key is ready for use.
Attach the appropriate cap to the key carrier. When tightening, reaching the set torque is signaled by clicking the wrench. If you hear or feel a click, stop tightening.
Contents

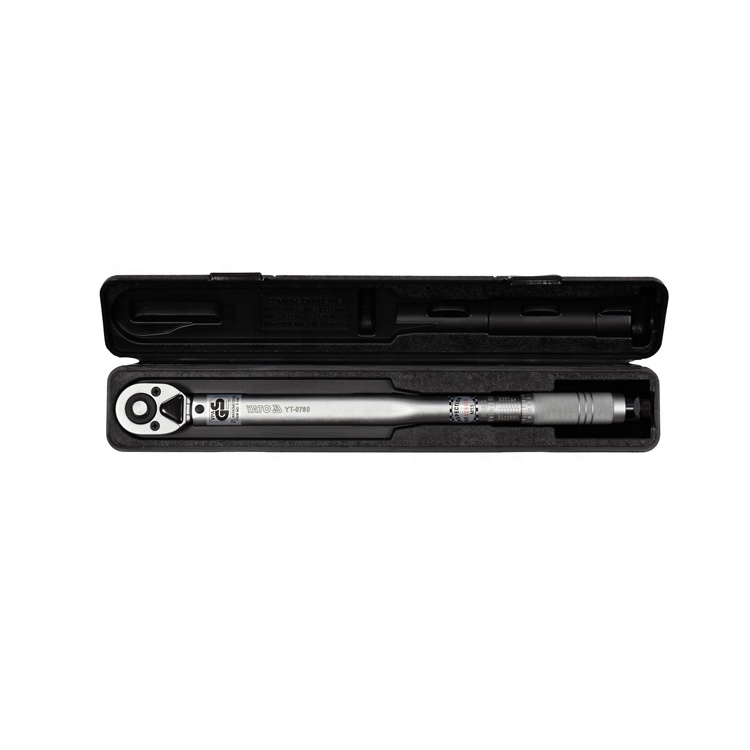

- torque wrench
- Factory Calibration Certificate (Individual for each key, marked with the key serial number)
- user manual
- Warranty Card

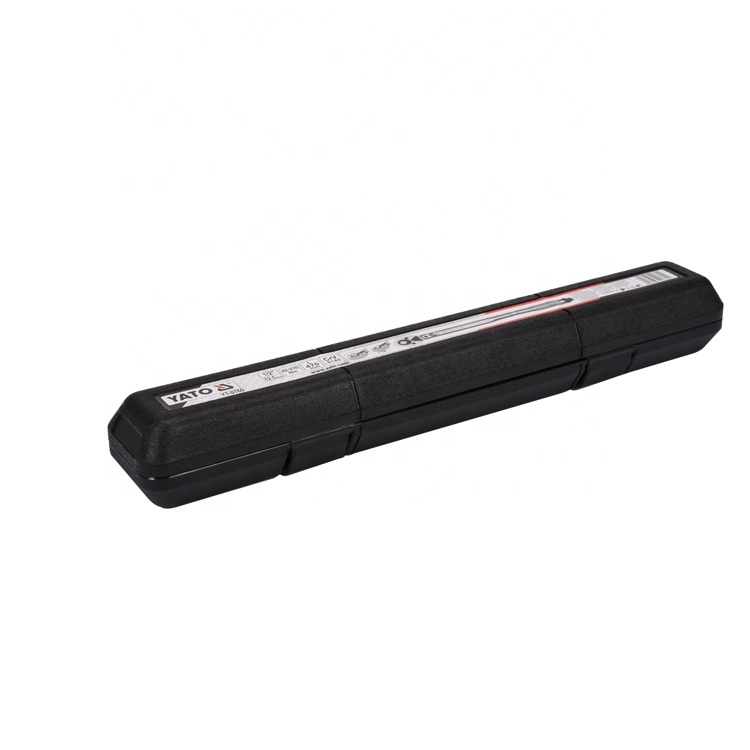

- suitcase
Technical data
Symbol | YT-0760 |
---|---|
EAN | 5906083907609 |
Brand | Yato |
weight (kg) | 1.7500 |
Master Carton MC | 12 |
Pal | 288 |
Length [mm] | 445-465 |
Package | suitcase |
Destiny | for precise tightening of threaded connections |
Drive size [cal] | 1/2" |
Torque value [Nm] | 42-210 |
Tolerance | +-4% |
Calibration certificate | TAK |
