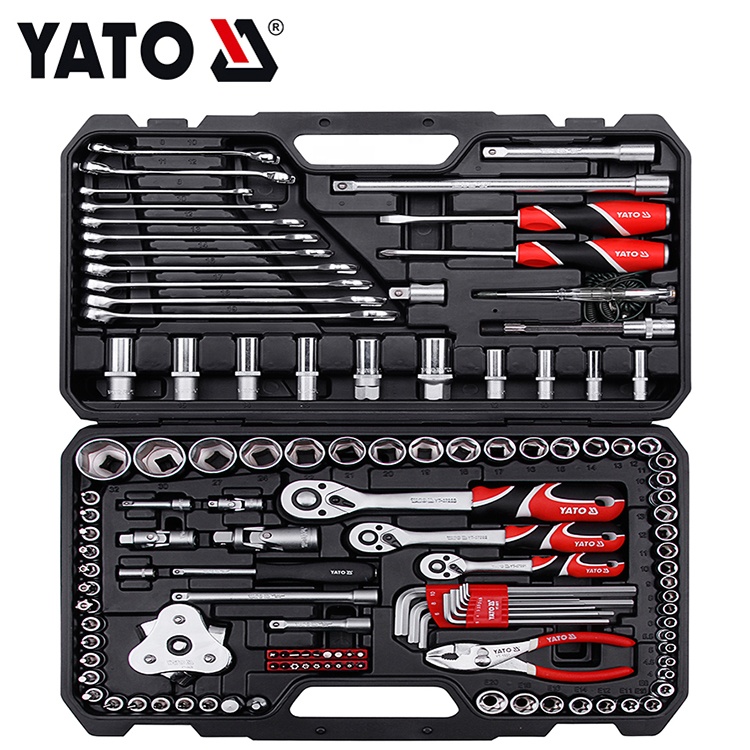

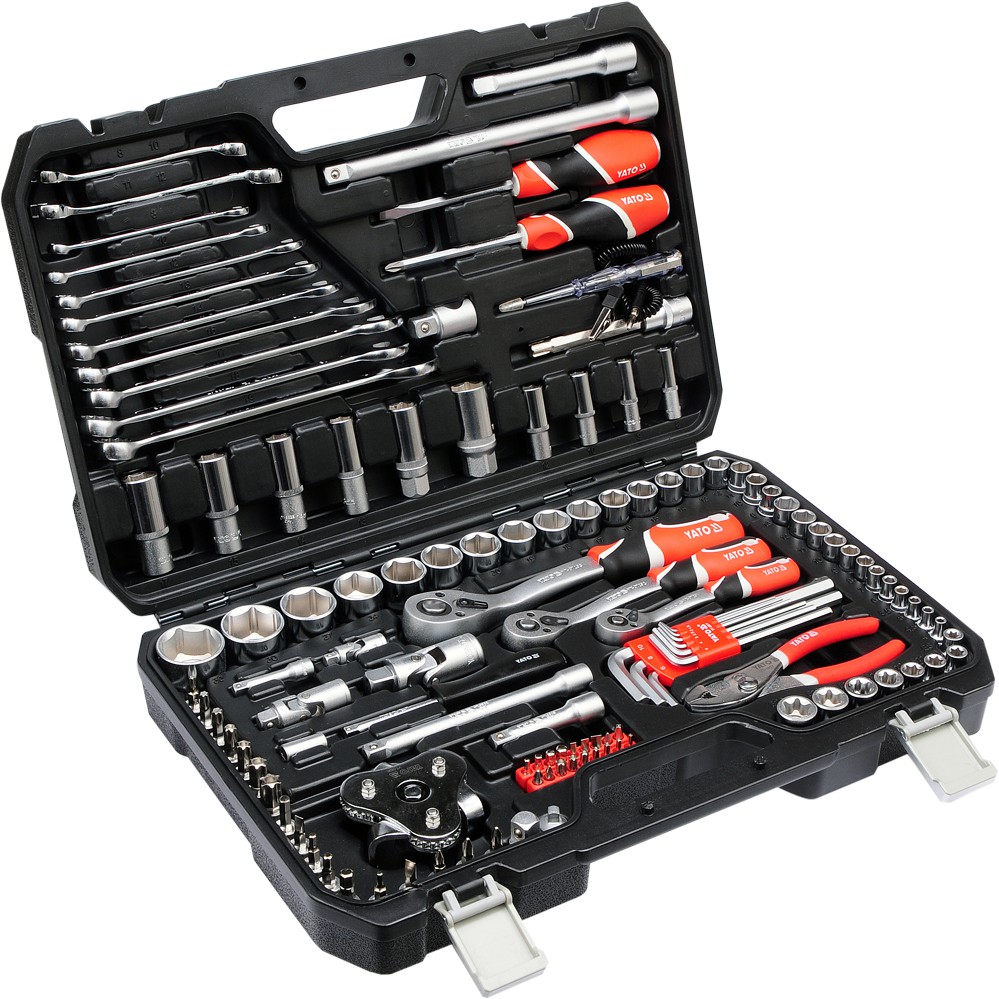

YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set
YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set
YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set
YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set
YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set
YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set

YATO INDUSTRIAL 126 Pcs Hand Tools Socket Set Open End Wrench Tool Set


Description
Brand Name:YATOModel Number:YT-38875
Place of Origin:Shanghai, ChinaApplication:Auto Repairing, Auto Repairing
Package:SUITCASEDimensions:Other
Product name:TOOL SETColor:Silver
MOQ:2PCLogo:Customized Logo
OEM:AcceptedQuality:Durable Solid
GROUP:INDUSTRIAL
Product Description





126PCS, 1/2" <(>&<)> 3/8" <(>&<)> 1/4"DR., ALL SOCKETS: 6PT, 2 TONE WITH LATHE KNURLING; 1/2’’DR. REGULAR, 6PT, CRV 50BV30, DIN 3121, AS-DRIVE, LENGTH: 38/42MM, 7PCS (YT-1213 – 20MM/ YT-1214 – 21MM/ YT-1215 – 22MM/ YT-1217 – 24MM/ YT-1218 – 27MM/ YT-1219 – 30MM/ YT-1220 – 32MM), 3/8’’DR. REGULAR, 6PT, CRV 50BV30, DIN 3121, AS-DRIVE, LENGTH: 28/30MM, 11PCS (YT-3804 – 9MM/ YT-3805 – 10MM/ YT-3806 – 11MM/ YT-3807 – 12MM/ YT-3808 – 13MM/ YT- 3809 – 14MM/ YT-3810 – 15MM/ YT-3811 – 16MM/ YT-3812 – 17MM/ YT-3813 – 18MM/ YT-3814 – 19MM), 1/4’’DR. REGULAR, 6PT, CRV 50BV30, DIN 3121, AS- DRIVE, LENGTH: 25MM, 12PCS (YT-1401 – 4MM/ YT-1402 – 4.5MM/YT-1403 – 5MM/ YT-1404 – 5.5MM/ YT-1405 – 6MM/ YT-1406 – 7MM/ YT-1407 – 8MM/ YT- 1408 – 9MM/ YT-1409 – 10MM/ YT-1410 – 11MM/ YT-1411 – 12MM/ YT-1412 – 13MM); 3/8"DR. DEEP, CRV 50BV30, DIN 3121, AS-DRIVE, LENGTH: 63MM, 4PCS (YT-3827 – 13MM/ YT-3828 – 14MM/ YT-3829 – 15MM/ YT-3831 – 17MM), 1/4"DR. DEEP, CRV 50BV30, DIN 3121, AS-DRIVE, LENGTH: 50MM, 4PCS (YT- 1419 – 8MM/ YT-1420 – 9MM/ YT-1421 – 10MM/ YT-1423 – 12MM); STAR SOCKET 3/8’’DR., 6PT, CRV 6150, 8PCS (E8, E10, E11, E12, E14, E16, E18, E20); EXTENSION BAR 1/2"DR., CRV 50BV30, LENGTH: 127MM (YT-1247), 1/2"DR., CRV 50BV30, LENGTH: 254MM (YT-1248), 3/8"DR., CRV 50BV30, LENGTH: 76MM (YT- 3843), 3/8"DR., CRV 50BV30, LENGTH: 152.4MM (YT-3844), 1/4"DR., CRV 50BV30, LENGTH: 50.8MM (YT-1429); THREE WAY JOINT 3/8"(F)x1/2"(M), CRV 50BV30; UNIVERSAL JOINT 1/2"DR., CRV 50BV30 (YT-1252), 3/8"DR., CRV 50BV30 (YT-3850), 1/4"DR., CRV 50BV30 (YT-1437); SPARK PLUG SOCKET 3/8"DR., CRV 50BV30, LENGTH: 64MM, 16MM (YT-3851), 21MM (YT-3852); CURVED RATCHET HANDLE WITH TPR HANDLE 1/2"DR., LENGTH: 255MM, CRV6140 (YT-07293), 3/8"DR., LENGTH: 200MM, CRV6140 (YT-07292), 1/4"DR., LENGTH: 155MM, CRV6140 (YT-07291); SPINNER HANDLE 1/4"DR., LENGTH: 150MM, CRV 50BV30 (YT-1427); ADAPTER 1/2"(F)x3/8"(M), CRV 50BV30, LENGTH: 34MM (YT- 1255), 3/8"(F)x1/2"(M), CRV 50BV30, LENGTH: 35MM (YT-3854), 3/8"(F) x1/4"(M), CRV 50BV30, LENGTH: 27MM (YT-3853); BIT ADAPTER 1/4"x1/4", CRV6140 (YT-1297); SCREWDRIVER BITS 1/4"DR., S2, LENGTH: 25MM, 18PCS (SL: YT-7801 – 4MM/ YT-7802 – 5MM/ YT-7805 – 6.5MM/; PH: YT-7807 – PH1/ YT-7809 – PH3/; PZ: YT-7810 – PZ1/ YT-7811 – PZ2/; TORX TAMPERPROOF: YT- 7822 – T10/ YT-7823 – T15/ YT-7824 – T20/ YT-7825 – T25/ YT-7826 – T27/YT-7827 – T30/ YT-7828 – T40/; HEX: YT-7831 – 3MM/ YT-7832 – 4MM/ YT-7833 – 5MM/ YT-7834 – 6MM); BIT SOCKETS 1/2"DR., AISI S2/ CRV6150, LENGTH: 100MM (SPLINE: YT-0453 – M10), 3/8"DR., AISI S2/ CRV6150, LENGTH: 50MM, 17PCS (SL: YT-7706 - 5.5MM/ YT-7707 - 6.5MM/; PH: YT-7700 - PH1/ 2x YT-7701 - PH2/; TORX: YT-7684 - T20/ YT-7687 - T30/ YT-7688 - T40/; TORX TAMPERPROOF: YT-7709 – T45/ YT-7710 – T50/ YT-7711 – T55/ YT- 7712 – T60/; HEX: YT-7693 - 3MM/ YT-7694 - 4MM/ YT-7695 - 5MM/ YT-7696 - 6MM/ YT-7697 - 7MM); COMBINATION SPANNER DIN 3113, AS-DRIVE, CRV, 9PCS (YT-0337 – 8MM/ YT-0339 – 10MM/ YT-0341 – 12MM/ YT-0342 – 13MM/ YT-0343 – 14MM/ YT-0345 – 16MM/ YT-0346 – 17MM/ YT-0347 – 18MM/ YT-0348 – 19MM); FLARE NUT WRENCH CRV 6140, 2PCS (YT-0135 – 8x10MM/ YT-0136 – 11x12MM); SCREWDRIVER GO-THROUGH CRV 6150, 2PCS (SL: YT-25985 - 6x100MM/; PH: YT- 25993 - PH2x100MM); AUTOMOTIVE CIRCUIT TESTER 6-24V (YT-28522); ADJUSTABLE PLIERS LENGTH: 150MM (YT-1957); OIL FILTER WRENCH CRV, 63- 120MM (YT-0826); HEX KEY LONG SET S2, 9PCS (YT-5877 – 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10MM)









Description
A professional tool kit that has been developed to meet the needs of specialized automotive and mechanical services.
The socket wrenches as well as the drive of the sockets are made of strong, tool chromium-vanadium steel CrV 50BV3.
The caps were made by die forging, and before the hardening process they were calibrated using precision gauges and control devices.
Sockets equipped with AS-Drive system, increasing the maximum torque by 25%, with full protection of the edges of the caps, caps with a two-tone surface finish.
The set also includes bits made of hard S2 steel.
The set enables work requiring very high loads and precision, it allows to perform many service activities related to unscrewing and screwing of threaded connections of various nominal sizes.
The rattles have a three-component handle and 72 teeth (5 steps working stroke).

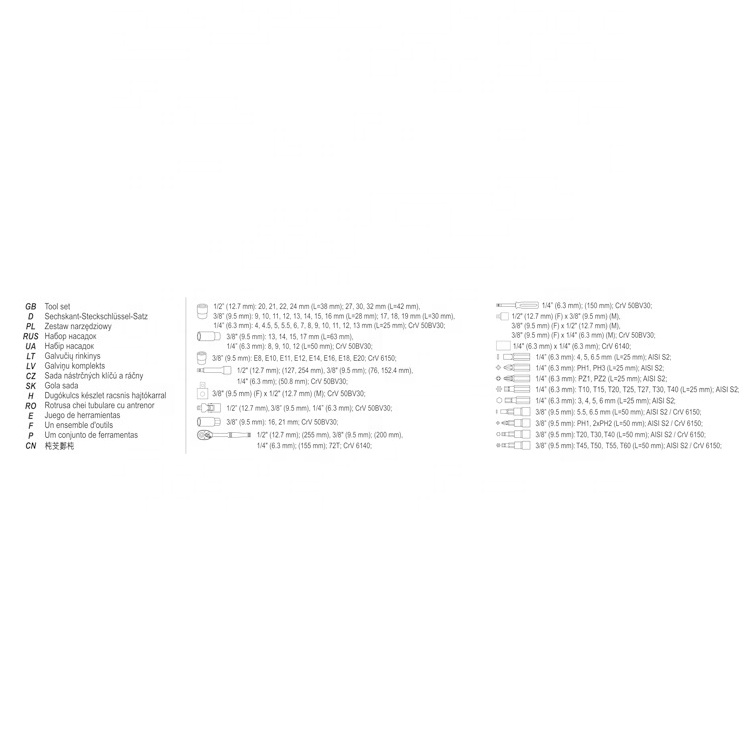

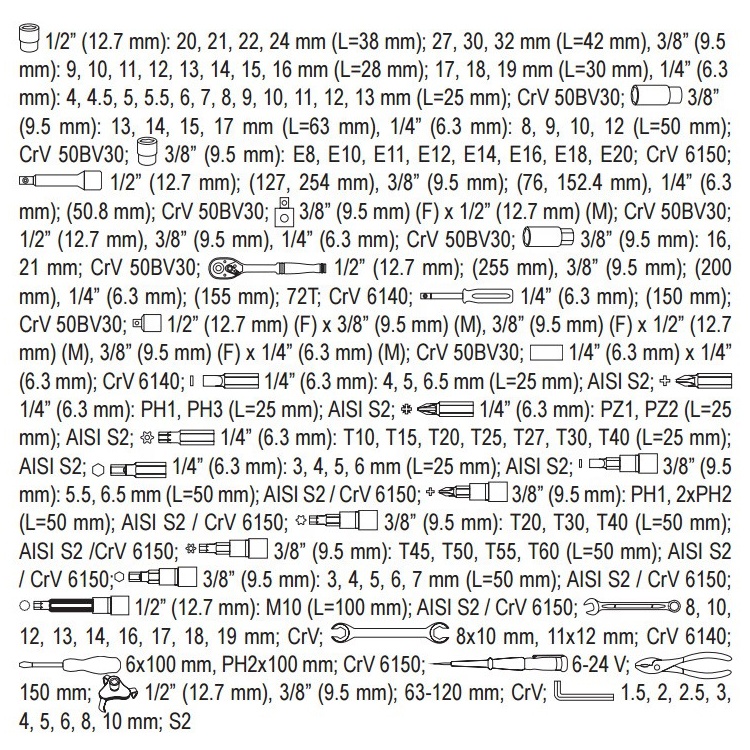

Contents

Sockets 1/2" (12,7 mm): 20; 21; 22; 24 mm, L= 38 mm; 27; 30; 32 mm, L= 42 mm
Sockets 3/8" (9,5 mm):9; 10; 11; 12; 13; 14; 15; 16 mm, L= 28 mm; 17; 18 mm, 19 mm L= 30 mm
Sockets 1/4" (6,3 mm): 4; 4,5; 5; 5,5; 6; 7; 8; 9; 10; 11; 12; 13 mm, L= 25 mm: CrV 50BV30

Long sockets 3/8" (9,5 mm): 13; 14; 15 mm, 17 mm L= 63 mm

Long sockets 1/4" (6,3 mm): 8; 9; 10; 12 mm, L= 50 mm: 50BV30

Sockets3/8" torx (9,5 mm): E8; E10; E11; E12; E14; E16; E18, E20, CrV 6150

Extensions 1/2 ": 127 mm; 254 mm; 3/8": 76 mm; 152.4 mm; 1/4 ": 50.8 mm

Reduction 3/8 "(F) x 1/2" (M)

Gimbal: 1/2 "; 3/8", 1/4 "

Candle plugs 3/8 ": 16, 21 mm

Ratchet 1/2 ": 72T, L = 255 mm CrV 6140
Ratchet 3/8 ": 72T, L = 200 mm CrV 6140
Ratchet 1/4 ": 72T, L = 155 mm CrV 6140

Screwdriver knob 1/4 ", L = 150 mm

Reduction 1/2" (F) x 3/8" (M); 3/8" (F) x 1/2" (M); 3/8" (F) x 1/4" (M)

1/4" x 1/4" CrV 6140

Bits 1/4 ":flat 4.5; 6.5 mm;PH1, PH3; PZ1; PZ2; torx: T10, T15, T20, T25, T27, T30, T40;hexagonal 3, 4, 5, 6 mm

Flat screwdriver bits 3/8 ": 5.5, 6.5 mm

Phillips screwdriver tips socket 3/8 ": Ph1; 2xPh2

Torx screwdriver bits on a 3/8 "socket: T20; T30; T40; T45; T50; T55; T60

Hexagonal screwdriver bits on a 3/8 "socket:3; 4; 5; 6; 7 mm

Spline screwdriver bit on 1/2 "tip:M10 L=100 mm

flat mesh joints:8; 10; 12; 13; 14; 15; 16; 17; 18; 19 mm

Semi-open keys: 8x10 mm; 11x12 mm

Screwdrivers for screwdriving: 6x100 mm; PH2x100 mm

6-24V car voltage tester

150 mm pliers

Oil filter wrench: 1/2 ", 3/8" 63 - 120 mm
Allen keys: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm

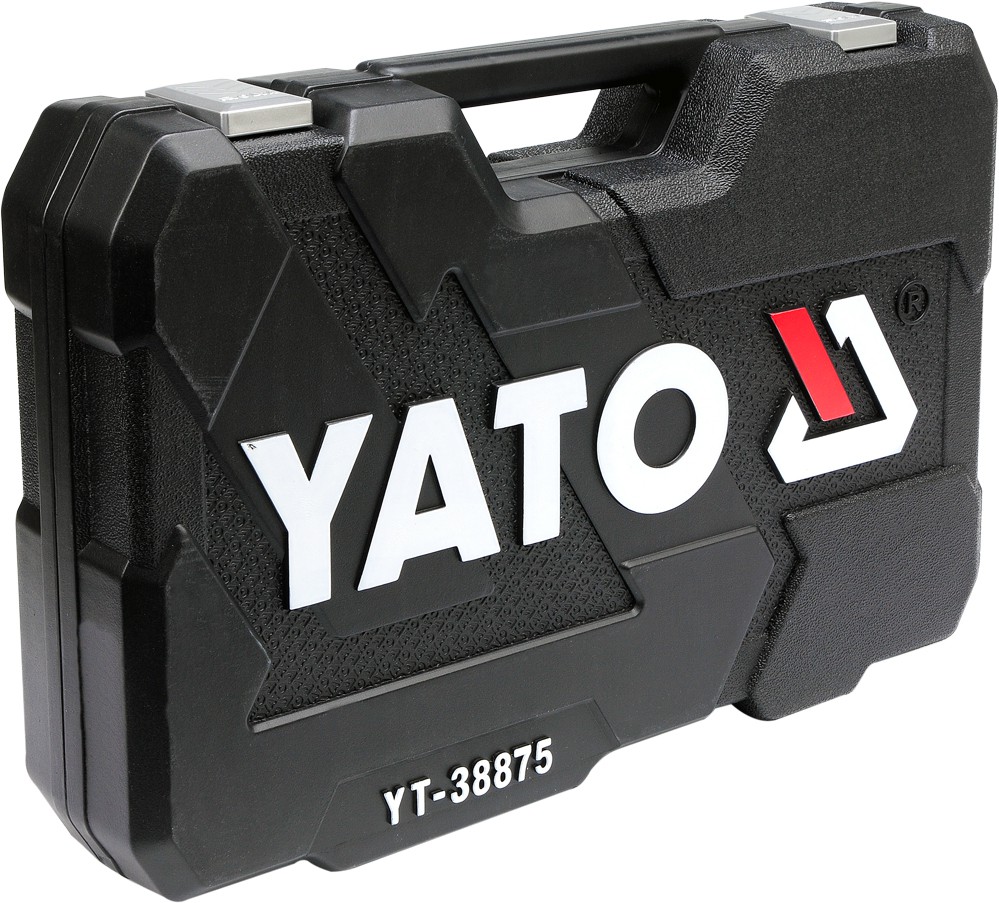

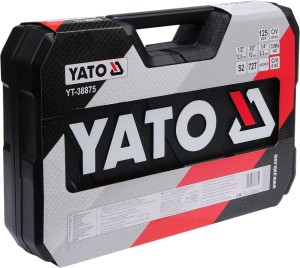

SUITCASE

Technical data

SymbolYT-38875
EAN5906083388750
BrandYato
weight (kg)10.1500
Length [mm]255





Product Category



Hot-Sale Product

YATO BRAND TOOLS

Durability, perfection of workmanship, excellent materials, high quality steel are technical features of YATO products, whose offer concerns three areas: service, construction and garden. YATO hand and pneumatic tools are successfully used by specialists in many fields of the economy. Exceptional durability and durability predispose YATO to applications in intense industrial and service conditions.
