Description
| Type: | Cabinet | Place of Origin: | Shanghai, China |
| Brand Name: | YATO | Model Number: | YT-55280 |
| Product name: | 162PCS CABINET TOOLS SET | Color: | black |
| Feature: | Movable | MOQ: | 1 Set |
| OEM: | Accept | Packing: | Carton |
| Lock: | KEY LOCK |

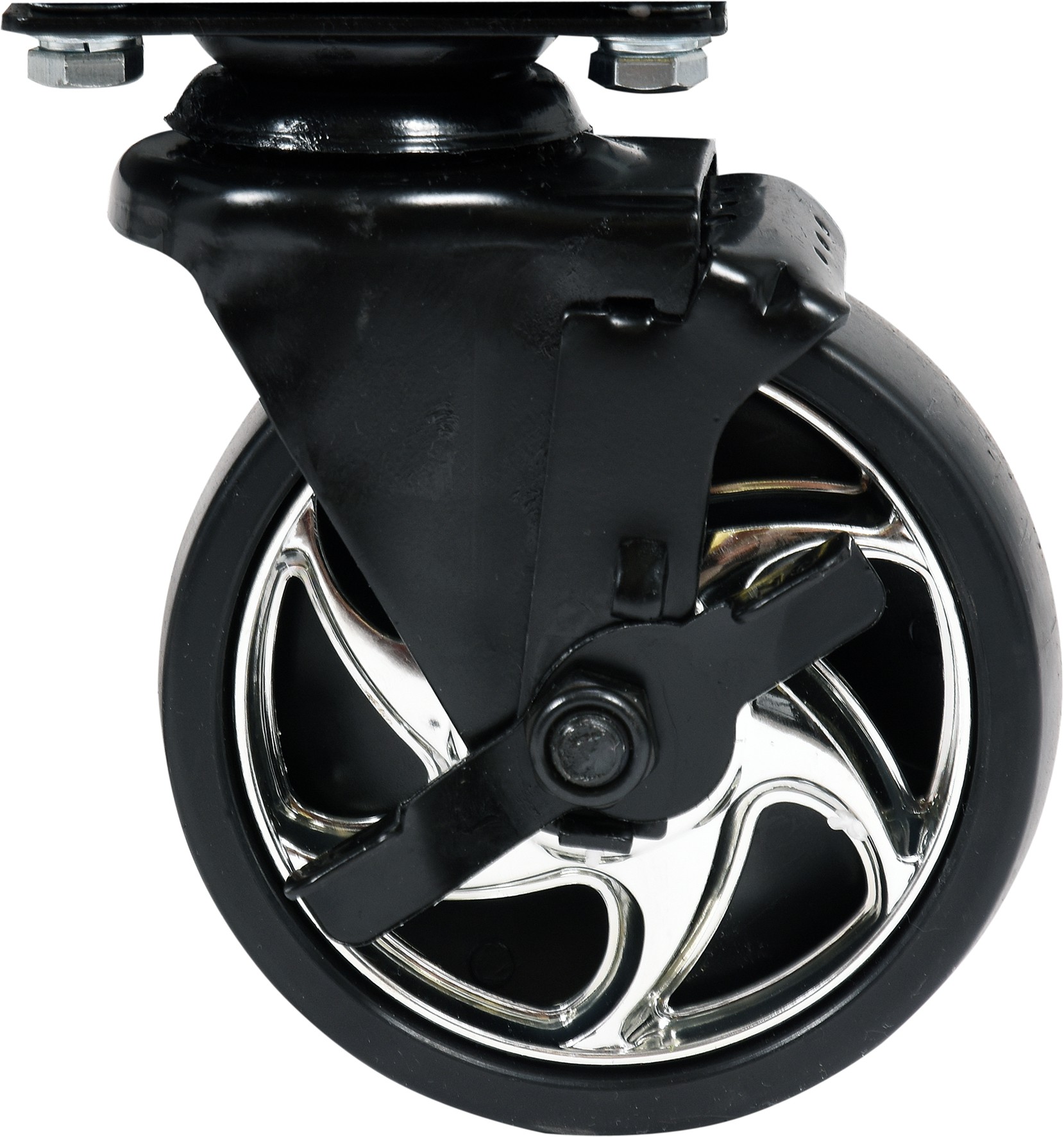

| 162PCS; CABINET: 3 DRAWERS W/ BALL BEARINGS (3 SMALL); NON SLIP BAMBOO WORKTOP; CENTRALISED LOCK, MAX. CAPACITY: SMALL DRAWER - 25KG; 4 WHEELS 125MM; 2 WHEELS WITH BRAKE, UNIVERSAL PREFORMATION SIDE WALL; DRAWERS LOCKING; 2x KEYS; PRODUCT SIZE: 720x685x455MM (WITHOUT WHEELS), 905x685x455MM (WITH WHEELS); FOLDING SHELF: 310x200MM; PILLAR: 1.5MM; TOP: 0.6MM; BOTTOM: 08MM; SIDE FRAME WITH HOLES: 0.8MM; DRAWERS: 0.6- 0.8MM; TOOL INSERTS: TRAY 1 (26PCS): COMBINATION SPANNER DIN 3113, AS-DRIVE, CRV, 13PCS (YT-0337 - 8MM/ YT-0338 - 9MM/ YT-0339 - 10MM/ YT-0340 - 11MM/ YT-0341 - 12MM/ YT-0342 - 13MM/ YT-0343 - 14MM/ YT-0344 - 15MM/ YT-0345 - 16MM/ YT-0346 - 17MM/ YT-0347 - 18MM/ YT-0348 - 19MM/ YT-0350 - 21MM); FLARE NUT WRENCH CRV 6140, 4PCS (YT-0135 - 8x10MM/ YT-0136 - 11x12MM/ YT-0137 - 13x14MM/ YT-0138 - 15x17MM); ADAPTER CRV 50BV30 1/2"(F)x3/8"(M) (YT-1255); OIL FILTER WRENCH CRV (YT-0826); VALVE CORE WRENCH; DOOR UPHOLSTERY REMOVER LENGTH: 200MM (YT-0842); SCRIBER FOR GLASS YG6X, 140MM (YT-3740); TELESCOPIC MAGNETIC PICK UP TOOL (YT-0661); FEELER LENGTH: 100MM, 17 GAUGES (YT-7220); AUTOMOTIVE CIRCUIT TESTER (YT-2865); LED ALUMINIUM TORCH 9 LED (YT-08570); TRAY 2 (112PCS): SOCKETS 1/2''DR. REGULAR, 6PT, MATERIAL: CRV 50BV30, 2 TONE WITH LATHE KNURLING, DIN 3121, AS-DRIVE, LENGTH: 38/42MM, 6PCS (YT-1213 - 20MM/ YT- 1215 - 22MM/ YT-1217 - 24MM/ YT-1218 - 27MM/ YT-1219 - 30MM/ YT-1220 - 32MM), SOCKETS 3/8’’DR. REGULAR, 6PT, MATERIAL: CRV 50BV30, 2 TONE WITH LATHE KNURLING, DIN 3121, AS-DRIVE, LENGTH: 28/30MM, 11PCS (YT-3804 - 9MM/ YT-3805 - 10MM/ YT-3806 - 11MM/ YT-3807 - 12MM/ YT-3808 - 13MM/ YT- 3809 - 14MM/ YT-3810 - 15MM/ YT-3811 - 16MM/ YT-3812 - 17MM/ YT-3813 - 18MM/ YT-3814 - 19MM), SOCKETS 1/4’’DR. REGULAR, 6PT, MATERIAL: CRV 50BV30, 2 TONE WITH LATHE KNURLING, DIN 3121, AS-DRIVE, LENGTH: 25MM, 10PCS (YT-1401 - 4MM/ YT-1403 - 5MM/ YT-1405 - 6MM/ YT-1406 - 7MM/ YT- 1407 - 8MM/ YT-1408 - 9MM/ YT-1409 - 10MM/ YT-1410 - 11MM/ YT-1411 - 12MM/ YT-1412 - 13MM); SOCKETS 1/4''DR. DEEP, 6PT, MATERIAL: CRV 50BV30, 2 TONE WITH LATHE KNURLING, DIN 3121, AS-DRIVE, LENGTH: 50MM, 4PCS (YT- 1419 - 8MM/ YT-1421 - 10MM/ YT-1422 - 11MM/ YT-1423 - 12MM); BIHEHAGONAL SOCKETS 1/2"DR. DEEP, 12PT, MATERIAL: CRV 50BV30, 2 TONE WITH LATHE KNURLING, AS-DRIVE, 6PCS (YT-12932 - 10MM/ YT-12934 - 12MM/ YT-12935 - 13MM/ YT-12936 - 14MM/ YT-12939 - 17MM/ YT-12941 - 19MM); IMPACT SOCKETS 1/2"DR. REGULAR, 6PT, MATERIAL: CRMO SCM-440, AS-DRIVE, LENGTH: 39MM, 3PCS (YT-1007 - 17MM/ YT-1009 - 19MM/ YT-1011 - 21MM); STAR SOCKET 3/8''DR., 6PT, CRV 50BV30, 5PCS (YT-05230 - E10/ YT-05231 - E12/ YT- 05232 - E14/ YT-05233 - E16/ E18), 1/4''DR., 6PT, CRV 50BV30, 5PCS (YT- 05211 - E4/ YT-05212 - E5/ YT-05213 - E6/ YT-05214 - E7/ YT-05215 - E8); EXTENSION BAR 1/2"DR., CRV 50BV30, LENGTH: 127MM (YT-1247), 1/2"DR., CRV 50BV30, LENGTH: 254MM (YT-1248), 3/8"DR., CRV 50BV30, LENGTH: 76MM (YT- 3843), 3/8"DR., CRV 50BV30, LENGTH: 152MM (YT-3844), 1/4"DR., CRV 50BV30, LENGTH: 50.8MM (YT-1429); UNIVERSAL JOINT 1/2"DR., CRV 50BV30 (YT-1252); UNIVERSAL JOINT 3/8"DR., CRV 50BV30 (YT-3850); UNIVERSAL JOINT 1/4"DR., CRV 50BV30 (YT-1437); SPARK PLUG SOCKET 3/8"DR., CRV 50BV30, LENGTH: 64MM, 16MM (YT-3851), 21MM (YT-3852); SPARK PLUG SOCKET 3/8"DR., CRV 50BV30, 14MM, 12PT, WITH MAGNET (YT-38510); CURVED RATCHET HANDLE WITH TPR HANDLE 1/2"DR., LENGTH: 255MM, CRV6140 (YT-07293), 3/8"DR., LENGTH: 200MM, CRV6140 (YT-07292), 1/4"DR., LENGTH: 155MM, CRV6140 (YT-07291); SPINNER HANDLE 1/4"DR., LENGTH: 150MM, CRV 50BV30 (YT-1427); BIT ADAPTER 3/8"x5/16", CRV6140 (YT-1296); BIT ADAPTER 1/4"x1/4", CRV6140 (YT-1297); 3WAY ADAPTER 3/8"(F)x1/2"(F), MATERIAL: CRV 50BV30 (YT-38541); SCREWDRIVER BITS 1/4"DR., S2, LENGTH: 25MM, 20PCS (SL: YT-7801 - 4MM/ YT-7802 - 5MM/ YT-7804 - 6MM/; PH: YT-7807 - PH1 x2/ YT-7808 - PH2 x2/ YT-7809 - PH3/; TORX: YT-7814 - T10/ YT-7815 - T15/ YT-7816 - T20/ YT-7817 - T25/ YT-7818 - T27/ YT-7819 - T30/ T40/; HEX: YT-7831 - 3MM/ YT-7832 - 4MM/ YT-7833 - 5MM/ YT-7834 - 6MM / 7MM); IMPACT SREWDRIVER BITS 5/16"DR. S2, LENGTH: 70MM, 24PCS (SL: YT-7934 - 5.5MM/ YT-7935 - 6.5MM/; PH: YT-7937 - PH1 x2/ YT-7938 - PH2 x2/ YT-7939 - PH3/; TORX TAMPERPROOF: YT-7953 - T20/ YT-7956 - T30/ YT-7957 - T40/ YT-7958 - T45/ YT-7959 - T50/ YT-7960 - T55/ YT-7961 - T60/; HEX: YT- 7962 - 4MM/ YT-7963 - 5MM/ YT-7964 - 6MM/ YT-7965 - 7MM/ YT-7966 - 8MM/; SPLINE: YT-7971 - M5/ YT-7972 - M6/ YT-7973 - M8/ YT-7974 - M10/ YT-7975 - M12); TRAY 3 (24PCS): SCREWDRIVER S2, 4PCS (SL: YT-2765 - 6x38MM/ YT- 2760 - 3x75MM/; PH: YT-2770 - PH0x75MM/ YT-2775 - PH2x38MM); GO-THROUGH SCREWDRIVER, MATERIAL: CRV 6150, 2PCS (SL: YT-2699 - 6x100MM/; PH: YT- 2708 -PH2x100MM); COMBINATION PLIERS, MATERIAL: CRV50, LENGTH: 180MM (YT-6601); SIDE CUTTING PLIERS, MATERIAL: CRV50, LENGTH: 160MM (YT- 6610); LONG NOSE PLIERS, MATERIAL: CRV50, LENGTH: 160MM (YT-6603); SLIP JOINT PLIERS LENGTH: 150MM (YT-1957); LOCKING GRIP PLIERS MATERIAL: CRMO, LENGTH: 180MM (YT-2450); CIRCLIP PLIERS, EXTERNAL STRAIGHT MATER |
Description

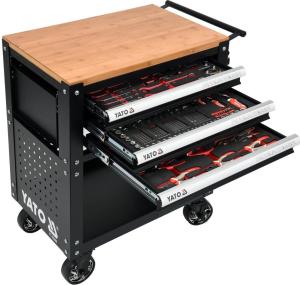

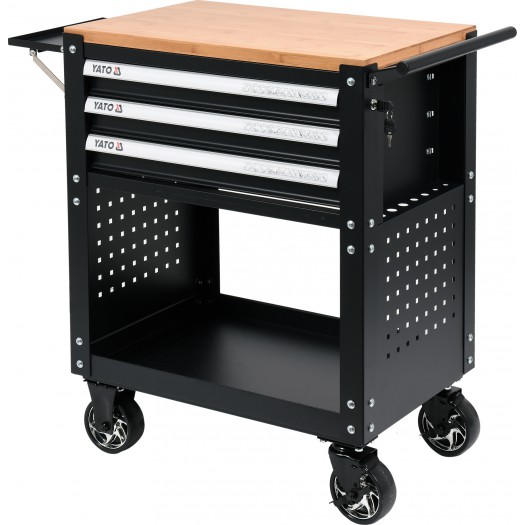

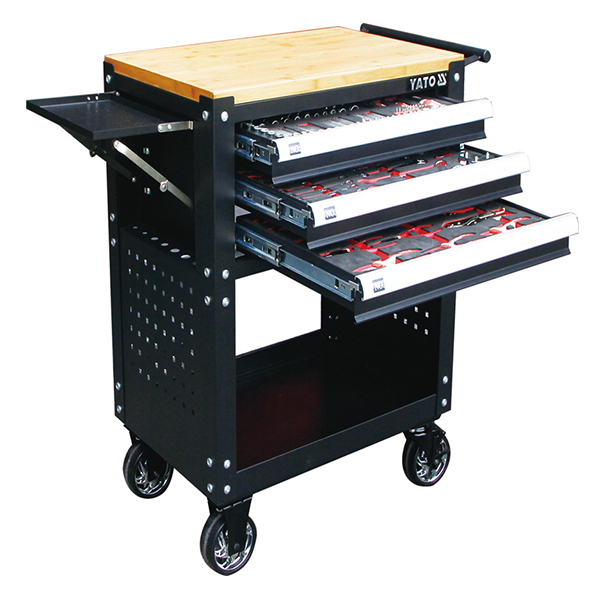

YT-55280 service cabinet. Three drawers are equipped with foam inserts with 162 necessary tools.
The table top is made of varnished hard material, the cabinet has a fold-out practical shelf and perforation on the walls.
Intended use / Application

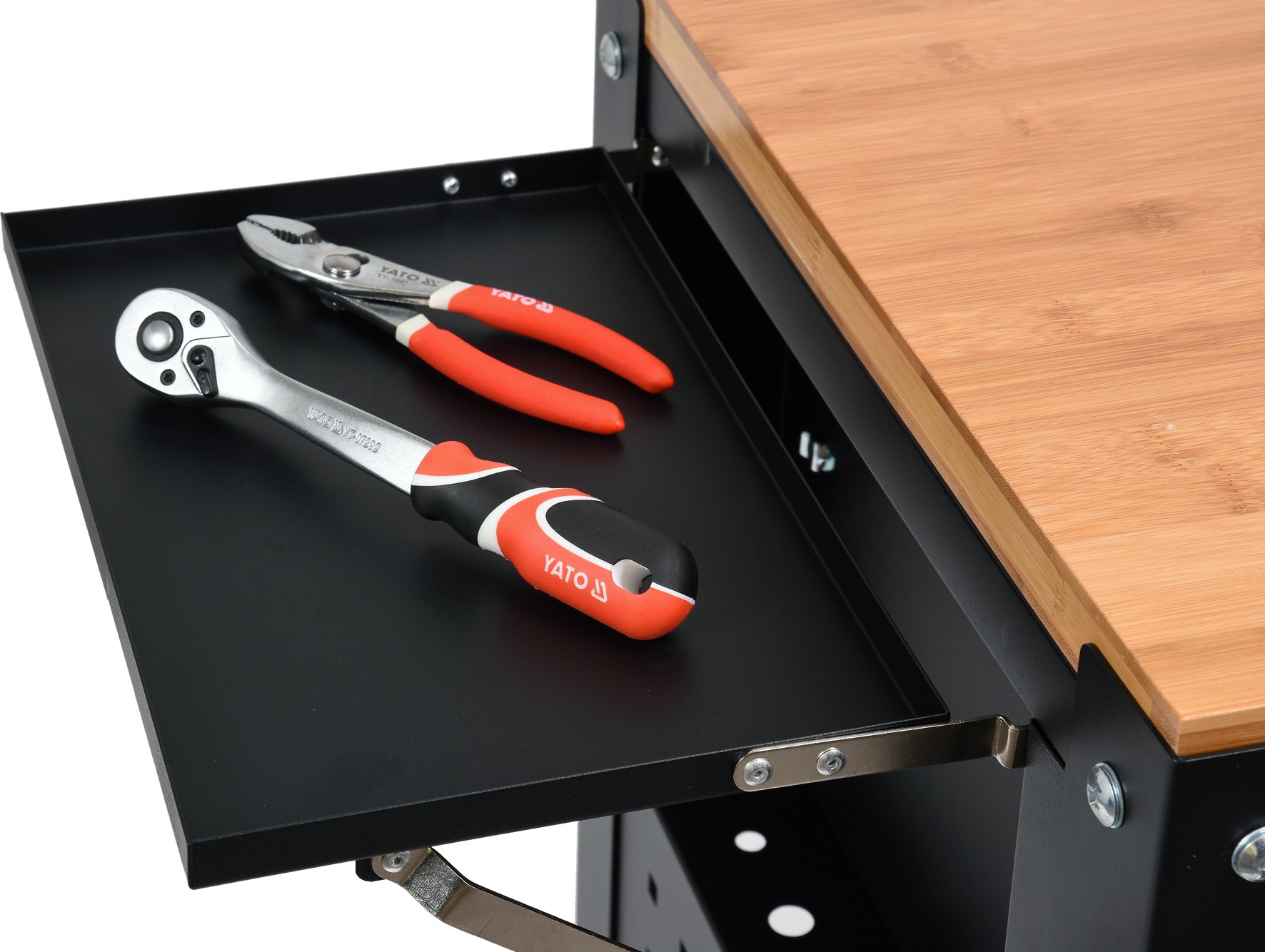

The YT-55280 service cabinet contains 162 tools in three lockable drawers. Useful in a car workshop or garage. Classic elegant design and high quality of YATO tools. The table top is made of varnished bamboo. The cabinet has a fold-out shelf measuring 310 x 200mm, as well as perforation and additional spaces for tools.
Technical data
| Symbol | YT-55280 |
|---|---|
| Brand | Yato |
| Quantity of drawers | 3 |
| Size [cm] | 90,5 x 68 x 45,5 |
| Quantity [pcs] | 162 |
YATO - IN AGREEMENT WITH TECHNOLOGY
Durability, perfection of execution, excellent materials and high quality steel are the main technical features of YATO products, which can be used in three fields: car repair workshops, construction and garden. Hand and pneumatic YATO tools are successfully used by specialists from many fields of industry. Unique durability and resistance of YATO tools destined them for heavy duty industry and service applications.
YATO BRAND TOOLS
Durability, perfection of workmanship, excellent materials, high quality steel are technical features of YATO products, whose offer concerns three areas: service, construction and garden. YATO hand and pneumatic tools are successfully used by specialists in many fields of the economy. Exceptional durability and durability predispose YATO to applications in intense industrial and service conditions.
Action:If you have any questions about the goods, please do not hesitate to contact us.
